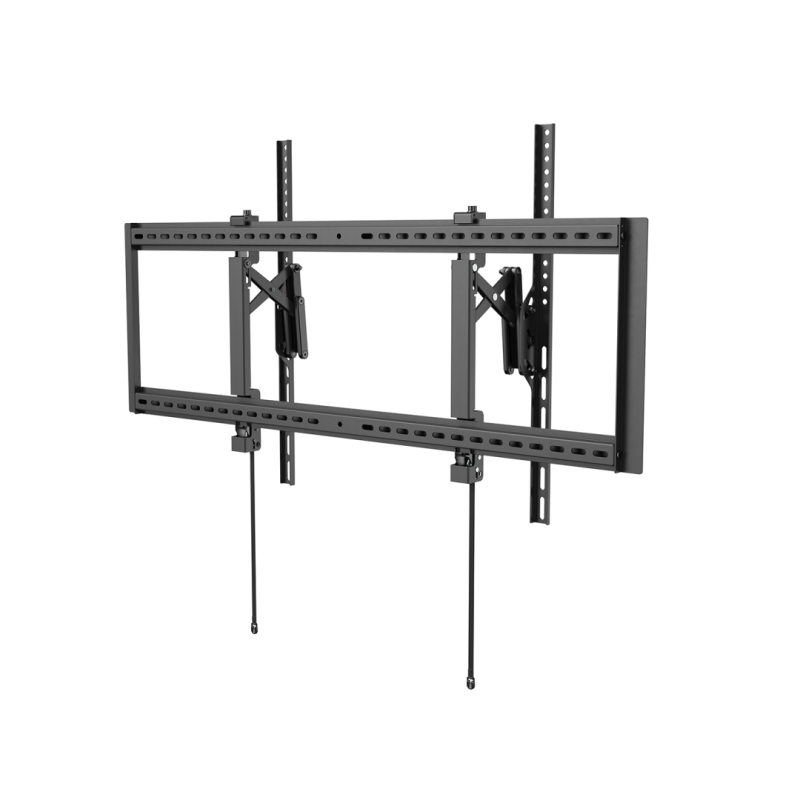

Napofix® VW10060E – TV Extension Tilt Wall Mount 55″ – 105″

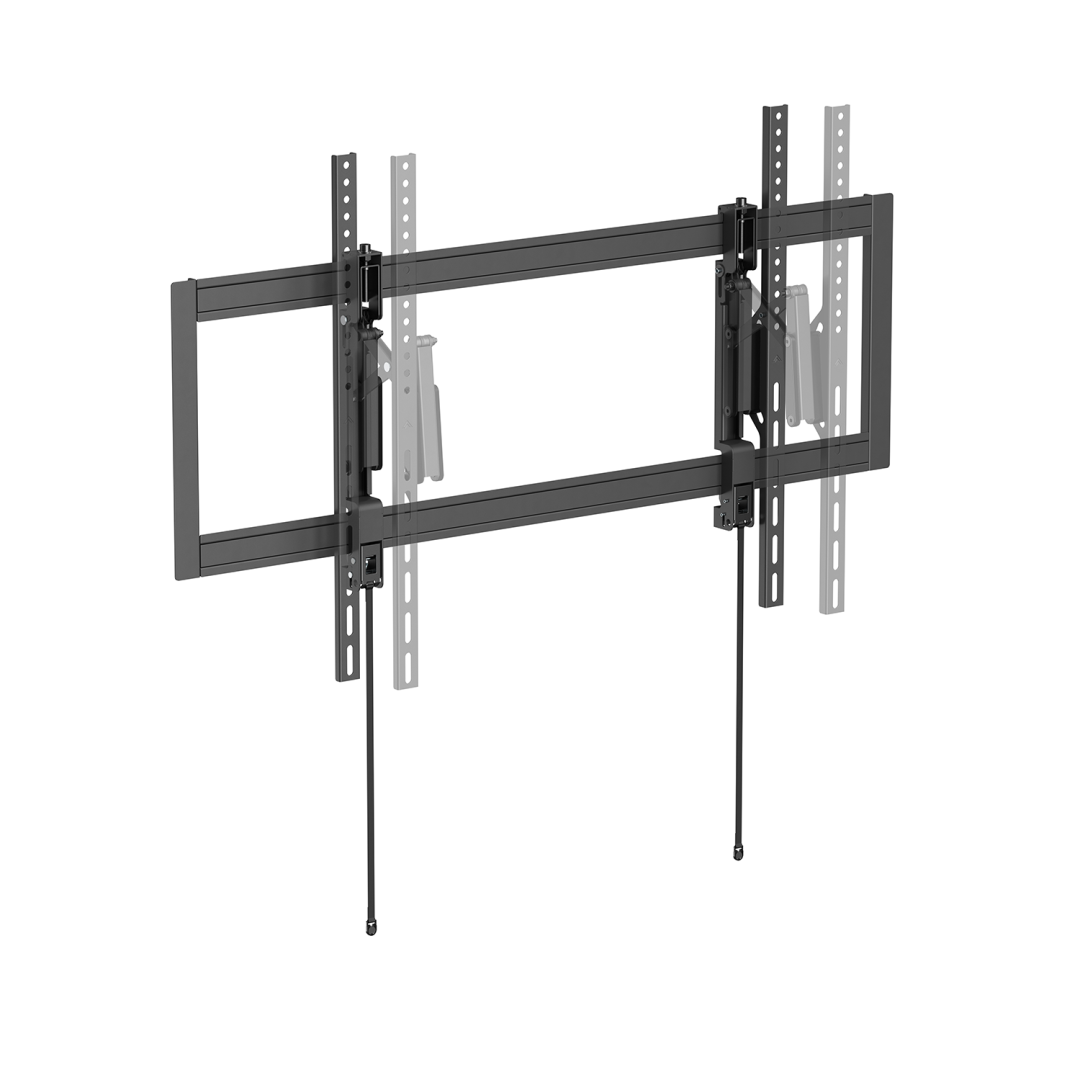

Versatility is one of the strengths of this mount, with an adjustable tilt from +10° to -15°. This feature makes it perfect for mounting above fireplaces, cabinets or in any other location that requires precise adjustment to avoid reflections and ensure the best field of view. The sliding design simplifies TV positioning, making installation quick and easy.

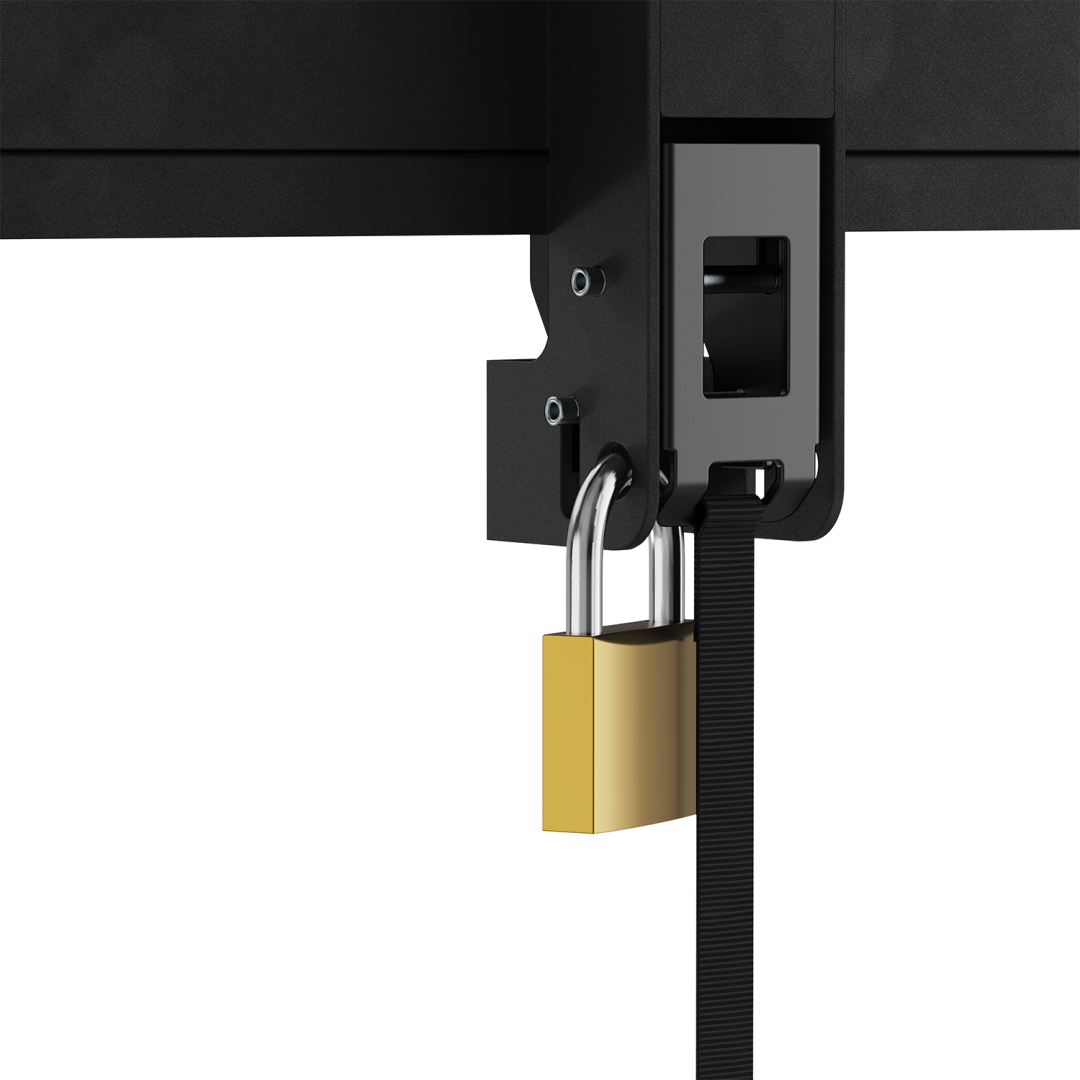

With security in mind, the Napofix® VW10060E TV Extension Tilt Wall Mount includes an anti-theft structure, making it an excellent choice not only for domestic environments, but also for public places such as bars, restaurants or waiting rooms.

With the Napofix® VW10060E TV Extension Tilt Wall Mount, your large TV gets the support it deserves, combining advanced functionality, security and a design that integrates perfectly into your space.

• Minimum screen size: 55″
• Maximun screen size: 105″
• VESA Minimum: 100 x 100 mm
• VESA Maximum: 1000 x 600 mm
• Vesa: 100 x 100 mm, 100 x 200 mm, 100 x 300 mm, 100 x 400 mm, 100 x 500 mm, 100 x 600 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 200 x 500 mm, 200 x 600 mm, 300 x 100 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 300 x 500 mm, 300 x 600 mm, 400 x 100 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 400 x 500 mm, 400 x 600 mm, 500 x 100 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 500 x 500 mm, 500 x 600 mm, 600 x 100 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 600 x 600 mm, 700 x 100 mm, 700 x 200 mm, 700 x 300 mm, 700 x 400 mm, 700 x 500 mm, 700 x 600 mm, 800 x 100 mm, 800 x 200 mm, 800 x 300 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 100 mm, 900 x 200 mm, 900 x 300 mm, 900 x 400 mm, 900 x 500 mm, 900 x 600 mm, 1000 x 100 mm, 1000 x 200 mm, 1000 x 300 mm, 1000 x 400 mm, 1000 x 500 mm, 1000 x 600 mm
• Load capacity: 80 Kg

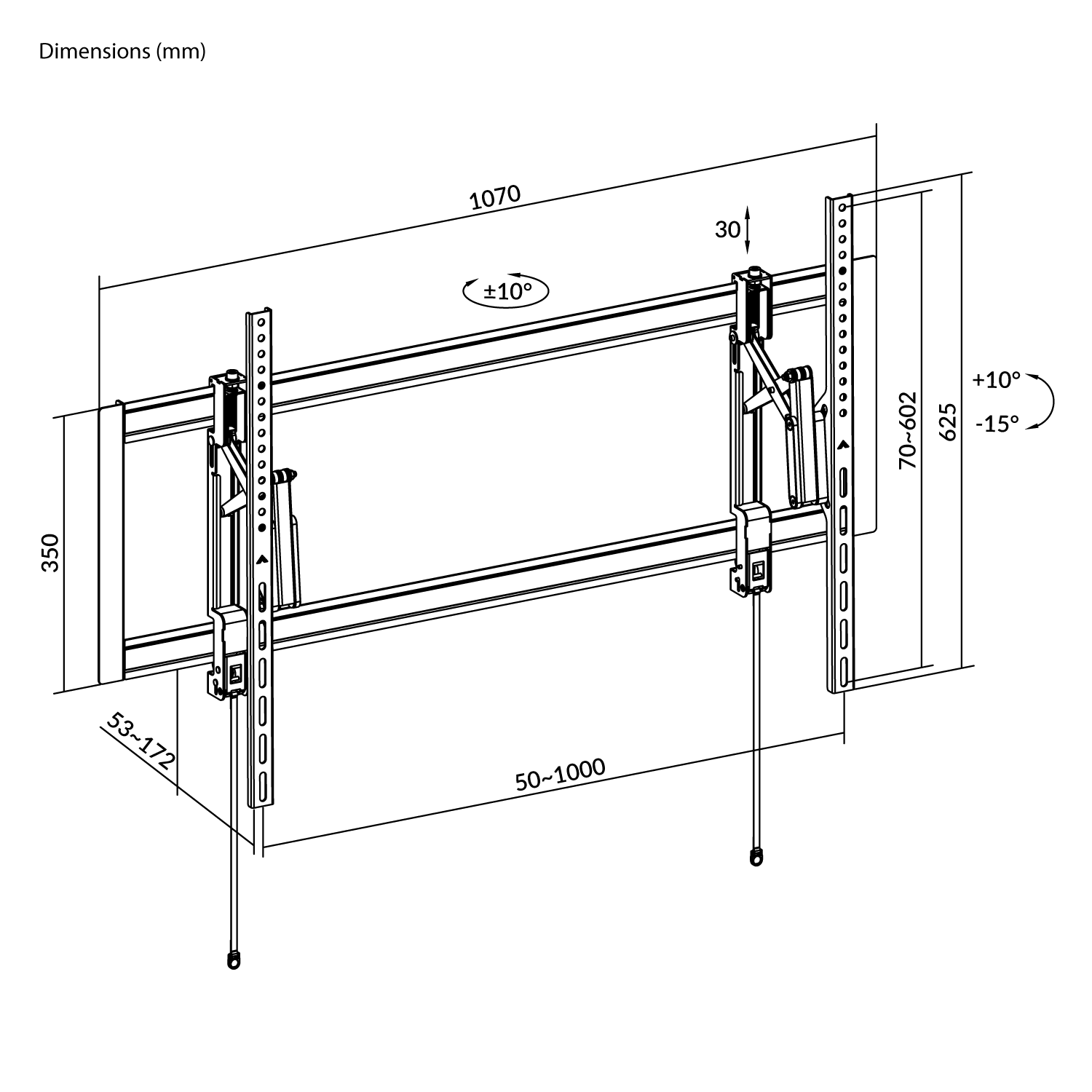

  Adjustments

  • Tilt: +10°~-15°
  • Swivel: ±10°
  • Nivel: 30mm
  • Depth: 53~172 mm
  • Height adjustment: 30 mm
